DAITO 'VERSACOPE' COPING ROBOT

Robot & Plasma = Endless Possibilities.

SO VERSATILE

Welcome to the worlds best CNC beam coping robot for steel fabrication. The Daito CRII is a step above all others for ease of use and cut quality.

Do it all in one machine!
* Cut high quality bolt holes and slots.
* Cut to length and all types of mitre cuts.

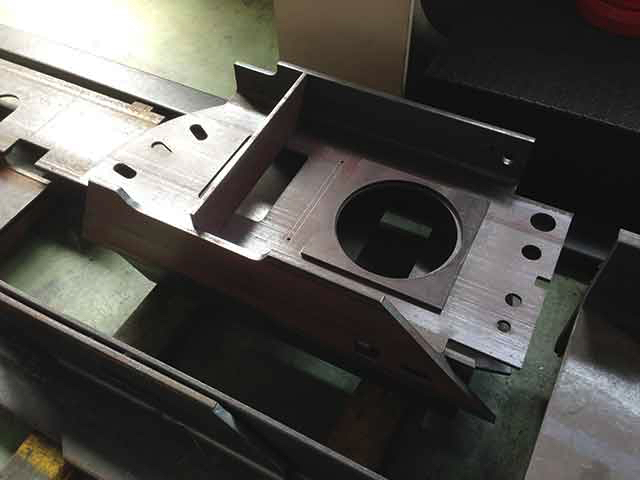

* Cut large and irregular shapes.
* Cut any type of cope and connection.
* Process almost any type of profile.
* Eliminate double / tripe material handling.
* Small compact design.
* Saves valuable workshop space.

Yes it’s that good!

ROBOT + PLASMA ENDLESS POSSIBILITIES

We have combined the versatility of the latest high speed industrial robotic arm and combined it with the Hypertherm XPR high performance plasma to create this amazingly versatile machine. It has quickly now become the steel fabricators most important piece of equipment.

YASKAWA MOTOMAN HIGH SPEED ROBOT

Yaskawa Motoman 6 axis HP20D-A80 High Precision Industrial Robot. Daito engineers tested every brand robot on the market and in the end chose Yaskawa Motoman. The latest 6 axis HP20D-A80 robot features high-precision drives on major axes and is designed for high-accuracy cutting applications. The accuracy can be within 0.1 mm. Compact design and advanced collision avoidance work together to maximise productivity. The short arm greatly reduces vibration at the torch. Ultra fast processors and software have also reduced idle time by approx. 40%.

HYPERTHERM® HYPERFORMANCE PLASMA

The HyPerformance® XPR300 plasma system has been designed and built for maximum performance and productivity in x-y, bevel and robotic cutting operations. The versatile 300- amp rated system combines fast cutting speeds, rapid process cycling, quick changeovers and high reliability, and gives you unmatched HyPerformance cut quality from very thin up to heavier thicknesses.

IT'S WHATS INSIDE THAT REALLY COUNTS

Take a closer look underneath the fancy covers to see the technology we use to process all your profiles in one machine!

INDUSTRIAL ROBOT

The latest high speed 6 axis can reach almost every angle on any profile.

SHORT PARTS

The key to processing shorts parts is our internal pop-up powered roller table and patented front vice system.

HI-DEF PLASMA

Hypertherm's high definition plasma can cut anything with absolute industry best finish.

IN-BUILT FEEDER

Daito's revolutionary pinch roller system can automatically feed all profiles and lengths.

THE DAITO 'VERSACOPE' COPING ROBOT ADVANTAGE

01

CAPABILTY LIKE NO OTHER MACHINE

It's like having a complete workshop in the one machine. Cut industry acceptable and AISC approved bolt holes like a drilling machine. Cut to length like a precision band sawing machine. Cut large and irregular shapes, any type of cope or connection like a skilled tradesman would normally need to do manually. Yes it’s that good! SEE COPING EXAMPLES
02

SO MUCH VERSATILITY

The Robot can reach areas impossible for any traditional drill and saw line to achieve. Add the latest technology Plasma that can cut almost any shape profile and any thickness and you now have the most versatile beam line for structural steel. No wonder its the worlds most favoured solution.
03

SPACE SAVING

We all know workshop space is critical for steel fabrication and its an expensive part of real estate. With the new compact CRII machine we have made sure the physical size is the smallest on the market,  but yet with the largest capacity in class. Amazing!
04

AFFORDABLE PRICE

Daito CR is a refined machine at a very affordable price. This is why it has become the favoured choice for steel fabricators and steel service centres the world over. Also you think about the one machine idea: one set of roller tables, one set of cross transfers means there is no need for added material handling which also helps keep the price low.

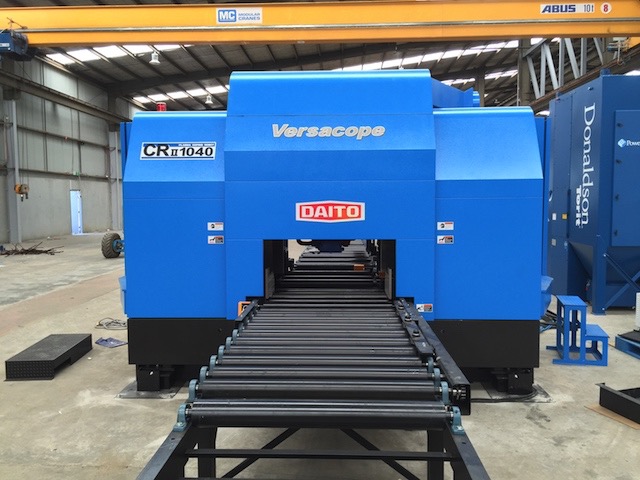

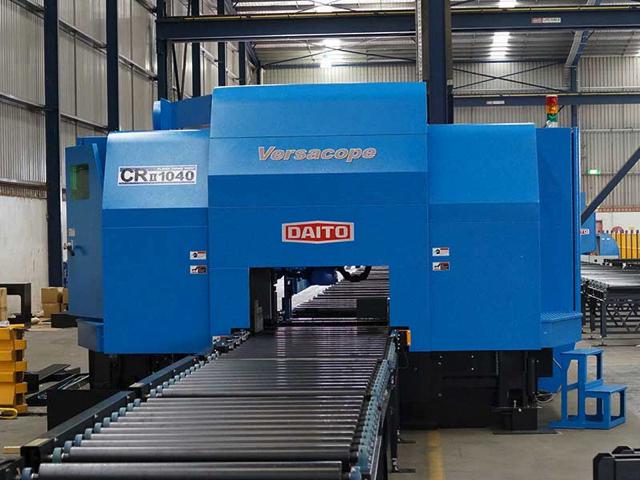

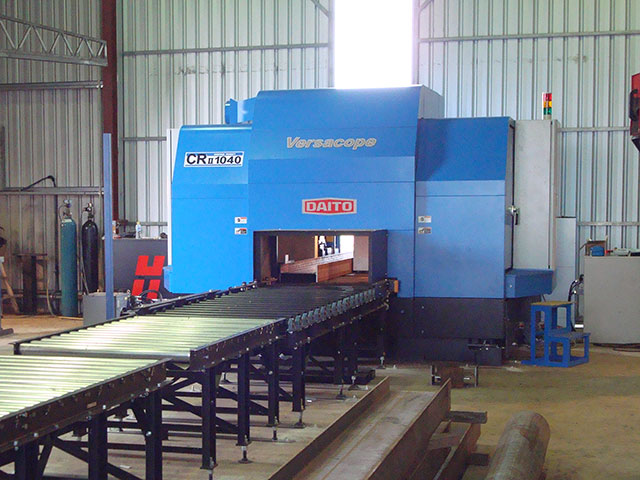

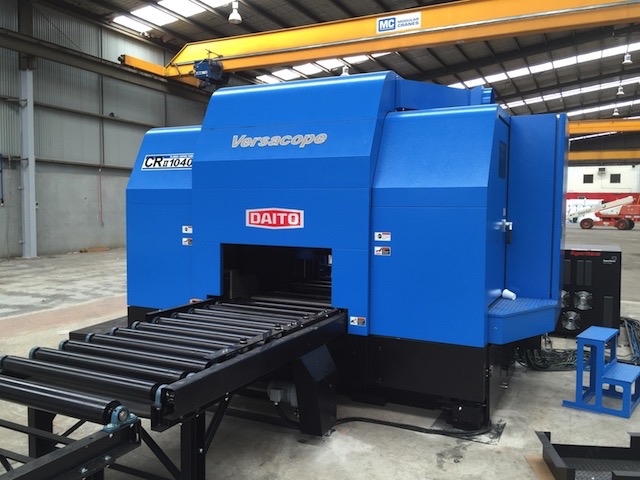

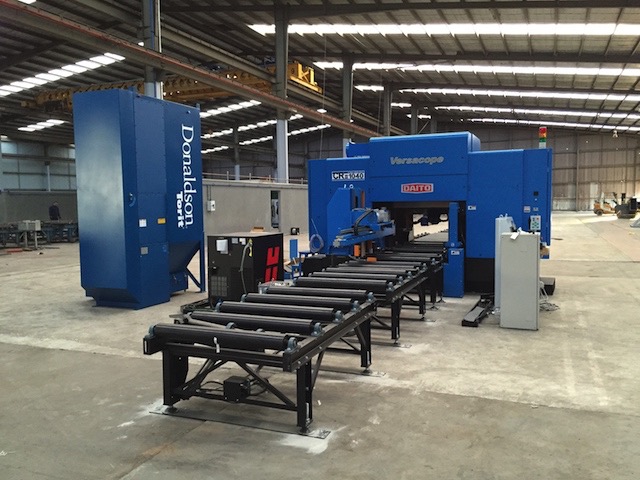

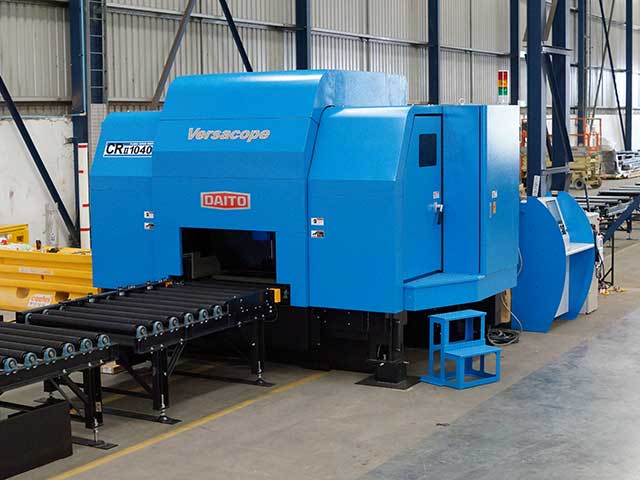

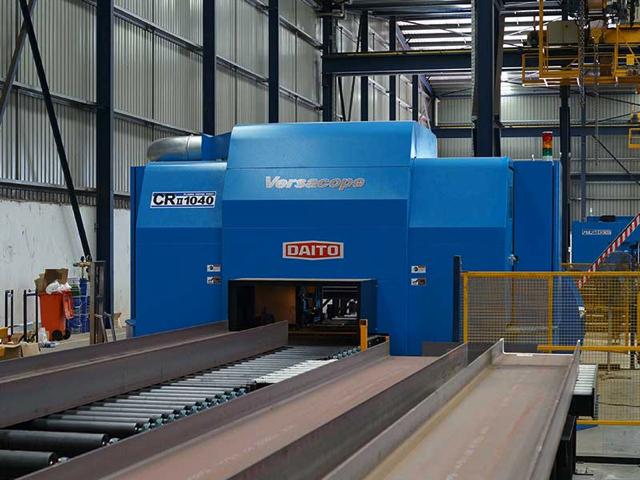

PHOTO GALLERY

WANT THE TIME STUDY VIDEO

Get in touch for time studies, video and in-depth analysis. We will show you how we reduce your processing time, processing cost and unnecessary processes through material handling and factory layout.

VIDEO GALLERY

SHORT PARTS PROCESSING

LONG PARTS CUTTING

PLATE PROCESSING BY ROBOT

CAR PARK TIME STUDY

COMPLETE TIME STUDY

SPECIAL MATERIAL HANDLING

SPECIFICATIONS

  • Model
  • Max. Width
    per
  • Max. Height
  • Robot Travel
  • Max. Length
  • Plasma Source
  • Max. Cutting Thickness
  • Piercing Thickness
  • Material Feed
  • SEND YOUR INQUIRY
  • CRII-7030
  • 700mm
    per
  • 350mm
  • 700 / 700 / 350mm
  • No Limitation
  • Hypertherm HPR260XD
  • 50mm
  • 32mm
  • Roller Feed + Feed Bar
  • CRII-1040
  • 1000mm
    per
  • 430mm
  • 700 / 1000 / 430mm
  • No Limitation
  • Hypertherm HPR260XD
  • 50mm
  • 32mm
  • Roller Feed + Feed Bar
  • CRII-1340
  • 1300mm
    per
  • 430mm
  • 700 / 1300 / 430mm
  • No Limitation
  • Hypertherm HPR260XD
  • 50mm
  • 32mm
  • Roller Feed + Feed Bar

SOFTWARE DIS 2

Completely redesigned and built from the ground up.

Main Features: Very easy to use and learn, graphical user interface with icons, powerful windows based, automatic nesting, machine feedback.
