Daito DCM Drilling Coping Marking

The Worlds First True All-In-One Structural Steel Processing Machine

Features

* 3 x Drilling Spindles.
* Robotic Plasma Cutting.
* Milling, Tapping and Countersinking.
* High speed Layout Marking.
* Cut any Shape / Connection on any Profile.
* Eliminate material handling.
* Material Loading and Unloading.
* Small footprint saves valuable workshop space.

This is the future of structural steel processing!

MULTI-TASKING MACHINE TOOL

Japan's renown 'Multi-Tasking' machine tool technology is now available on Daito structural steel processing machines. By combining multiple processes we are able to increase output while lowering costs.

3 x DRILLING / MILLING SPINDLES

For all precision drilling and milling applications. 3 x heavy duty, high powered and high speed spindles for each axis. Complete with direct drive motor, internal cooling and coolant through spindle (CTS).

ROBOT PLASMA CUTTING

The all new HyPerformance® XPR300 plasma system has been designed and built for maximum performance and productivity. The versatile 300-amp rated system combines fast cutting speeds, rapid process cycling, quick changeovers and high reliability, and gives you unmatched HyPerformance cut quality from very thin up to heavier thicknesses.

LAYOUT MARKING

Never before has layout marking been more relevant and realistic as it is now. With Daito's new revolutionary high-speed scratch type marking the time required to complete a beam with layout marks has been reduced by 70%.

THE SOLUTION

Automatically process all of these profiles to finished parts, all in one machine.

MAIN BENEFITS

The new Daito DCM offers so many benefits to end users.

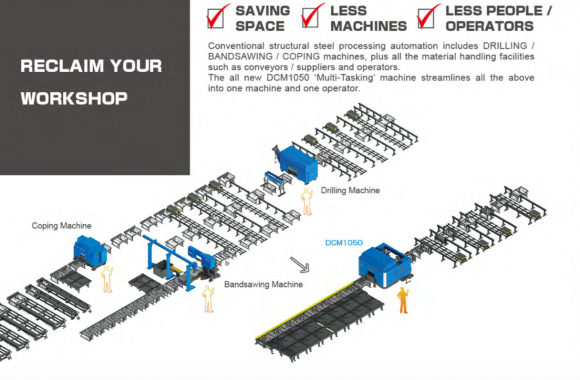

3 MACHINES IN ONE

  • SAVES SPACE

    DCM requires 70% less workshop space, compared to typical drill, saw and cope line.
  • LESS OPERATORS

    DCM only requires 1 person to operate machine. they can ever load and unload material.
  • LOWER INVESTMENT

    It's simple, you only need to buy 1 machine instead of 3! plus you buy less roller tables and less transfer carts, etc.
  • Eliminate Material Handling

    No need to transfer or lift material from one machine to the next to get a finished part.
  • INCREASED PRODUCTIVITY

    Completing the part in one machine eliminates idle time and increases productivity by 40%!

VIDEO INTRODUCTION

TECHNOLOGY

3 x Drilling Milling Spindles
Carbide Drilling
New Scratch Type Marking
Laser Measurement
Under Side Cutting
Walk Through Door
Roller Feed System
Dual Measuring Disc
Dual Zone Loading

LAYOUT

1. STOCKYARD LOADING

Lift and carry carts easily load material from the stockyard onto the in-feed roller conveyors.

2. IN-BUILT FEEDER

Material is fed and measured by Daito's famous pinch roller / measuring disc system, the most accurate in the world.

3. THE MACHINE

Daito DCM Combined Machine
Drilling / Milling Machine.
Plasma Coping Machine.
Layout Marking Machine.

4. DISCHARGE SYSTEM

The most effective way discharge finished parts off the out-feed conveyor.

GET THE INFORMATION PACK

Contact us for the full Daito DCM information pack and see how this revolutionary machine can start an immediate ROI from day 1.

PHOTO GALLERY

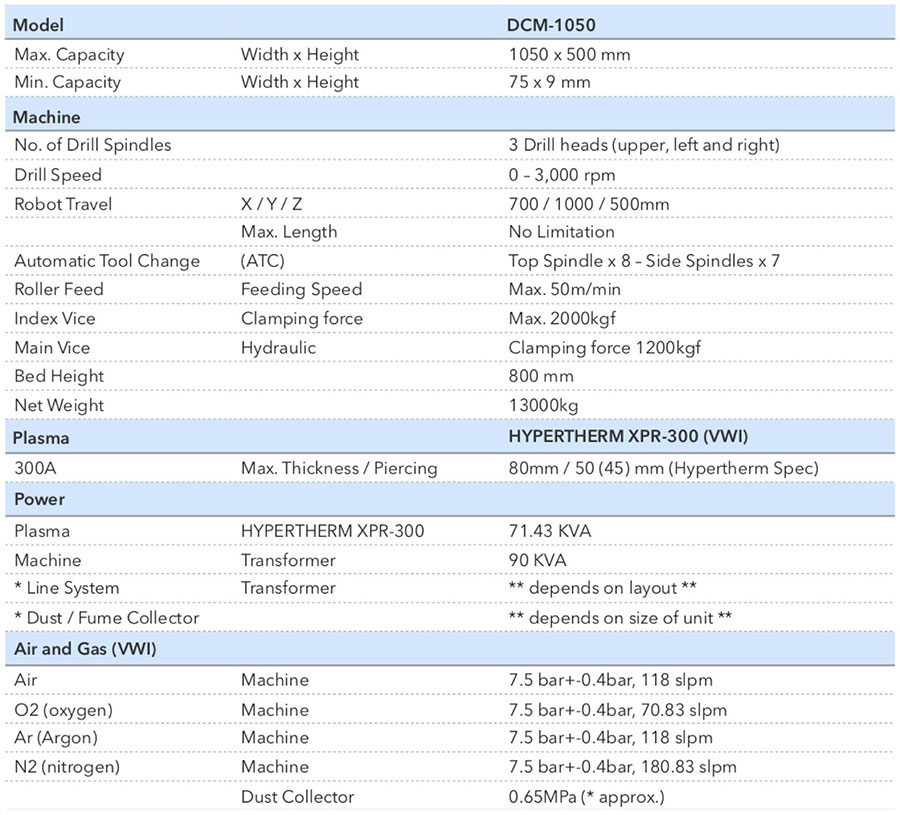

SPECIFICATIONS

DAITO-SEIKI CO. LTD.
Made in Japan

* Design Department with 50+ University Graduate Engineers.
* Dedicated R & D Department Building where ideas come to life.
* Quality Inspection Team check all parts for quality pass.
* Several Manufacturing Facilities over 3 Plants in Osaka, Japan.

SERVICE & SUPPORT

FOR THE LIFE CYCLE OF YOUR MACHINE

* Local factory trained technicians.
* 24 hour online support with solution centre.
